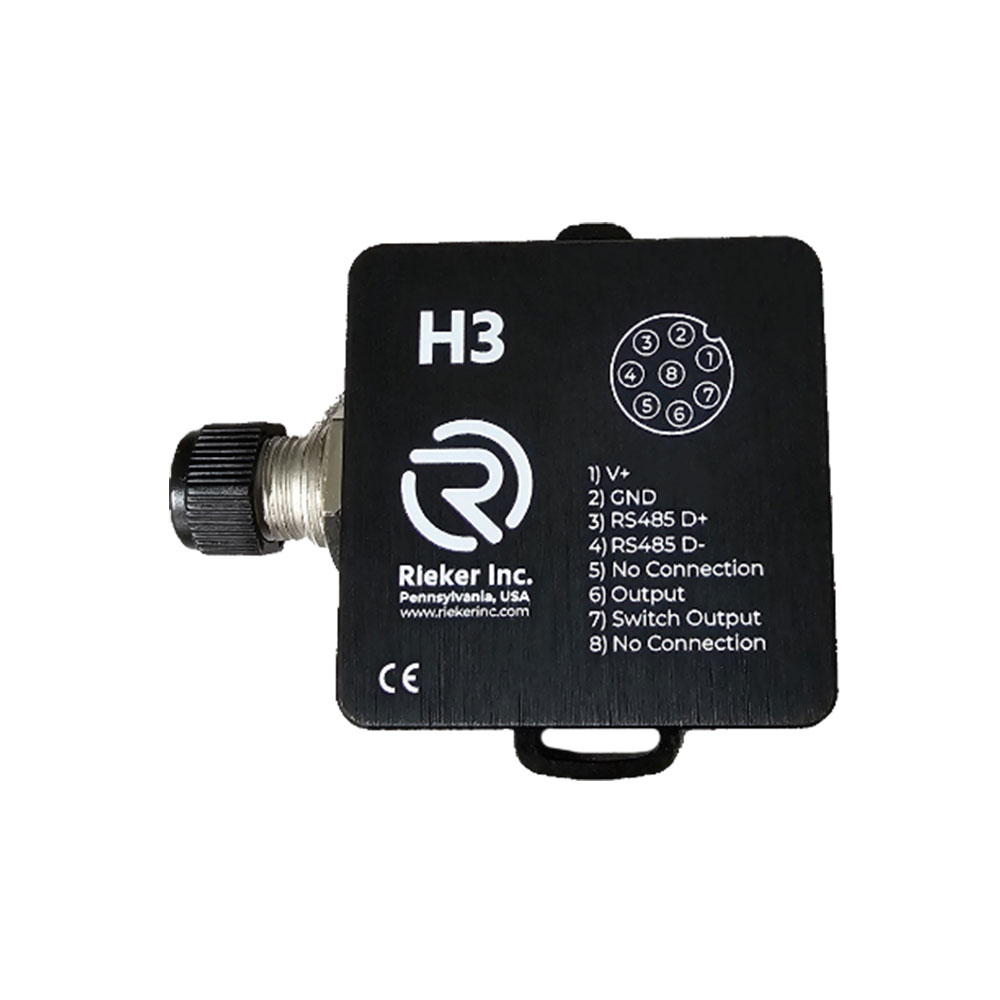

Features

• Single-axis angle measurement, scalable anywhere within the full ±180° calibrated range
• Rugged aluminum housing, environmentally sealed to IP67 for harsh industrial conditions
• Fully temperature compensated over −40 °C to +85 °C operating range
• Multiple simultaneous outputs: Current (4–20 mA or 0–20 mA), Voltage (0–5 V or 0–10 V), and RS-485 digital
• Configurable open-collector switch output (trip above, below, between, or outside a window)
• Reverse-polarity, overvoltage, and overcurrent protection; EMC-shielded design
• Shock and vibration resistant, suitable for OEM or field use

Options

• Power Supply: +11 to 36 V DC (non-regulated)
• Analog Accuracy: ±0.015 % FS over temperature; < ±0.005 % FS null accuracy @ 25 °C
• Resolution: < 0.005 ° (16-bit A/D resolution)
• Digital Output: RS-485 half-duplex (32-bit IEEE packetized float, up to 20 Hz update)
• Response Rate: user-selectable from 4 Hz to 0.3 Hz
• Accessories: Flex Series Configurator Kit (Flexware™ Toolkit + USB Interface) and LCD Display Box (0.1 ° resolution)
• Mounting: vertical plane, two #6 or M3.5 holes; dimensions 2.60 × 1.95 × 1.10 in [66 × 49.5 × 27.9 mm]

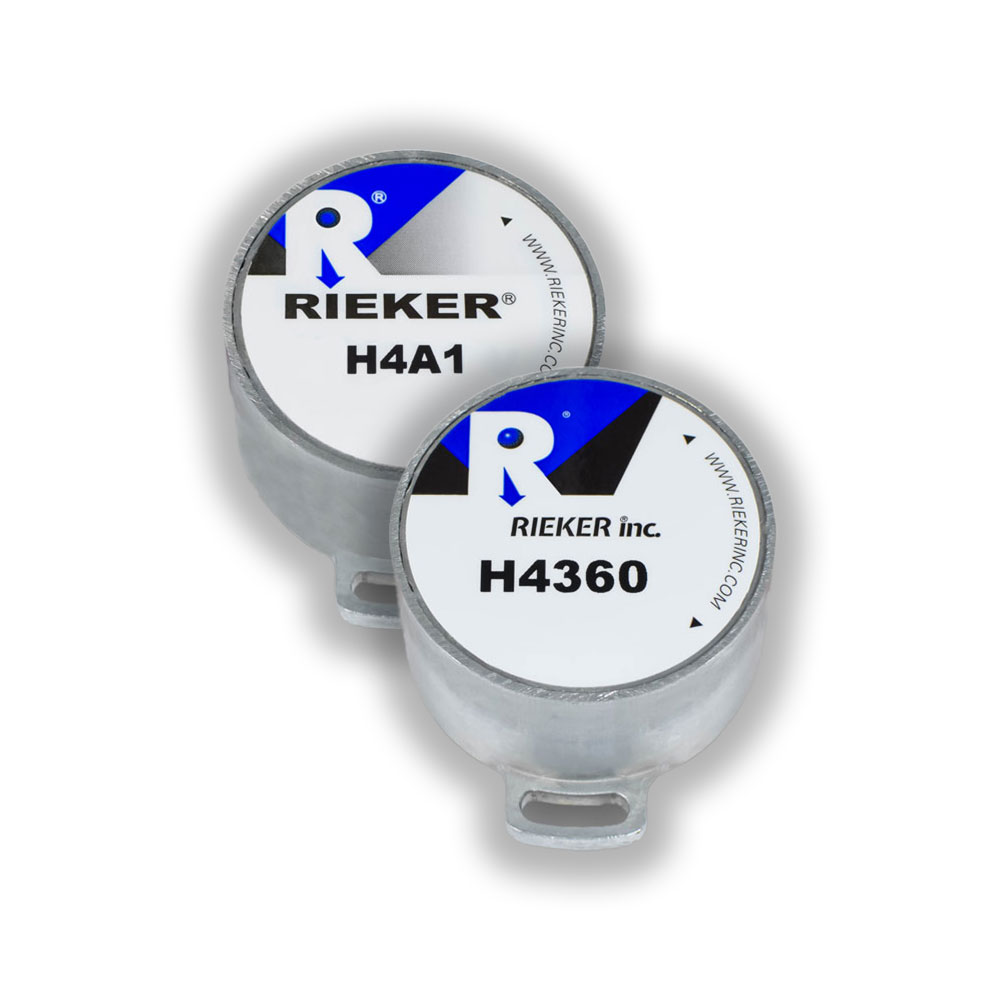

Features

• Single-axis electronic inclinometer built on Rieker’s Flex Series platform, providing verified accurate angular measurement for industrial, transportation, and safety applications
• Available in ±30°, ±45°, and ±70° models, or as the H4360 Flex variant configurable up to 360° full scale – adaptable for OEM and field system integration.
• Temperature-compensated MEMS sensor ensures stability and accuracy over –40 °C to +85 °C
• Multiple output options: Analog (0–5 V DC) or Digital Serial (RS-232) available depending on model
• Rugged die-cast zinc housing, environmentally sealed to IP67 for reliable operation in harsh conditions
• Reverse-polarity, over-voltage, and EMC protection; vibration- and shock-resistant design for long-term durability

Options

• Measurement Ranges: ±30° | ±45° | ±70° | ±180° (custom scaling available)
• Outputs: Analog (0–5 V DC), Digital (RS-232), or hybrid configurations
• Power Supply: 8–30 V DC standard; optional regulated 5 V DC input
• Mounting: surface or bracket mount, compatible with Flex Series footprint
• Accessories: RDI and RAD digital displays, Flexware™ Configurator Kit for range/output setup, and OEM cable assemblies
• Model Option – H4360 Flex Variant: adds 360° single-axis capability, RS-485 communication, and 4–20 mA analog output, extending the H4 Series for full-rotation applications

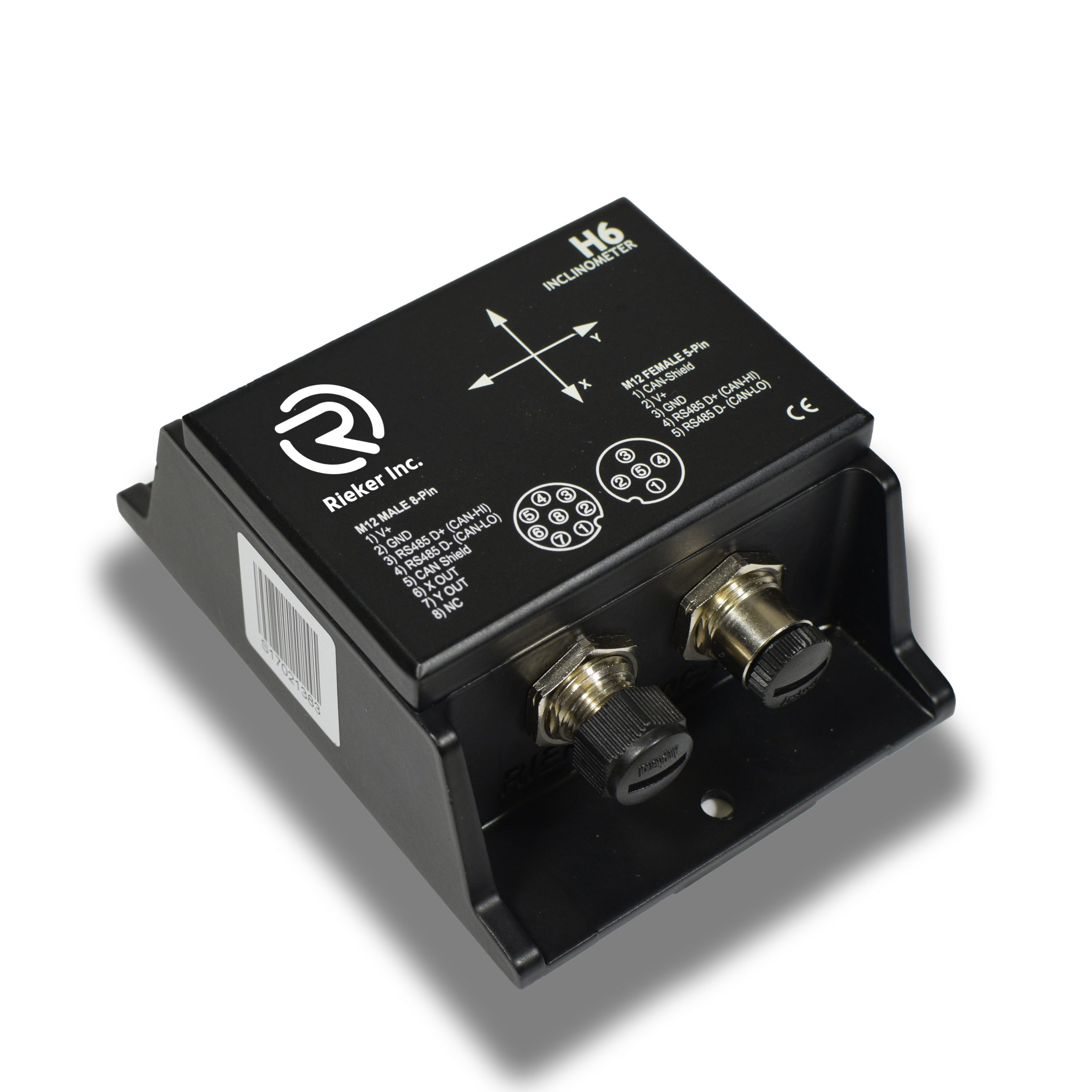

Features

• Dual-axis inclinometer built on Rieker’s Flex Series platform for verified accurate angle measurement
• Multiple simultaneous outputs: Analog (current or voltage), Open-collector Switch, RS-485, and CAN bus (J1939 or CANopen)
• Fully temperature compensated MEMS sensors for long-term stability from −40 °C to +85 °C
• IP68-rated aluminum housing with rugged, field-proven construction
• Reverse polarity, overvoltage, and EMC protection for dependable operation in harsh electrical environments
• Accuracy Proven: ±0.1º Typical; ±0.15° Max, tested and verified across full operating range

Options

• Outputs: Voltage (0–5 V, 0–10 V), Current (4–20 mA), RS-485, CAN J1939/CANopen, or Switch
• Power Supply: 8–30 V DC
• Mounting: horizontal or vertical plane; orientation set via Flex Dev Kit or factory calibration
• Accessories: Flexware™ Configurator Kit, USB interface cable, RDI/RAD digital displays, and OEM harness kits

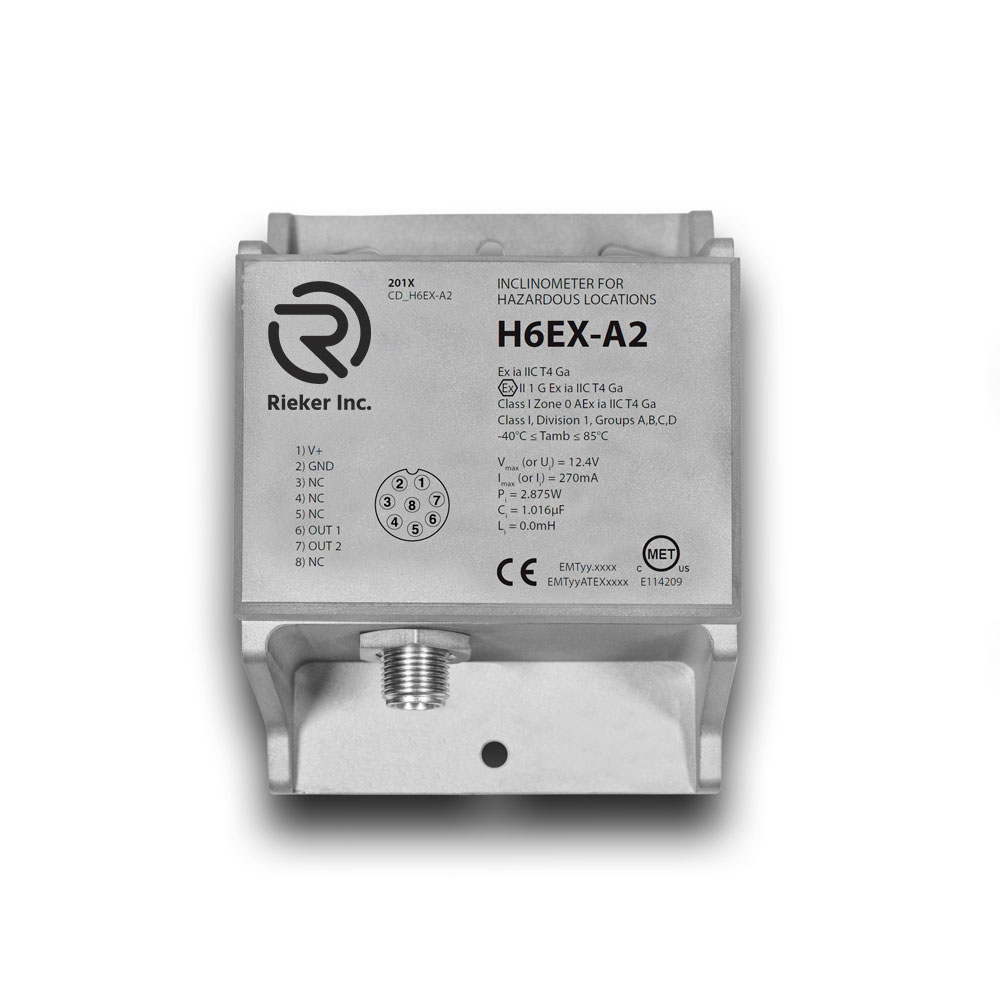

Features

• Dual-axis inclinometer built on Rieker’s Flex Series platform, delivering verified accurate angle measurement in hazardous and explosive environments
• Intrinsically Safe design certified to ATEX, IECEx, CSA, and UKEX standards
  • H6EX-A: Approved for ATEX/IECEx Zones 0, 1, 20 & 21
  • H6EX-B: Approved for ATEX/IECEx Zones 2 & 22
• 316 stainless steel housing provides exceptional corrosion resistance and environmental protection; rated IP68
• Temperature-compensated MEMS sensors ensure accuracy and long-term stability across −40 °C to +85 °C
• Multiple simultaneous outputs: Analog (current or voltage) and RS-485 digital communication
• Accuracy Proven: ±0.1° typical and 0.15° max precision, calibrated and validated across the full temperature range
• Designed for industrial, oil & gas, mining, offshore, and process control applications

Options

Measurement Range: configurable up to ±180° full scale

Outputs: 4–20 mA, 0–5 V, or RS-485 (factory configurable)

Power Supply: 11–36 V DC

Mounting: horizontal or vertical plane; orientation set via Flexware™ Toolkit

Temperature Compensation: full-range digital correction ensures minimal drift over time

Accessories: certified connection cables, configuration interface, and digital displays (RDI/RAD compatible)

Certifications: ATEX/IECEx/CSA/UKEX (specific per model variant – H6EX-A, H6EX-B

Features

• Precision mechanical inclinometers providing direct visual angle indication with ±5° full-scale range
• Scale increments: 0.5° for fine resolution and easy readability
• Housing: black compression-molded acetal copolymer resin, extremely tough for all-weather environments
• Operating Temperature: −50 °C to +70 °C (−58 °F to +158 °F)
• Large, high-contrast engraved scale for fast, accurate readings
• Mounting: panel-mount configuration for OEM or retrofit applications

Options

• Scale Range: ±5° (0.5° increments)
• Scale Style:
  • 5002P: Alphabetized scale (A–U, left-to-right)
  • 5002R: Numbered scale (0–20, left-to-right)
• Housing: compression-molded acetal copolymer resin, weather-resistant black finish
• Calibration: factory-verified accuracy
• OEM customization: face markings, scale layout, branding available

Features

• Liquid-capacitive inclinometer with integrated electronics; temperature compensated for stability.
• Two-wire, 4–20 mA current loop output (noise-robust; power from loop).
• Supply: +8…+30 V DC non-regulated; either polarity.
• Model ranges: ±10° (NG2i) | ±30° (NG3i) | ±80° (NG4i).
• Housing: 30% glass-filled PBT plastic, IP65 environmental protection.
• Operating temp: −40 °C to +85 °C; response time <0.3 s (1–3 s optional).

Options

• Time constant / rise time options (1 s, 2 s, 3 s).
• Mounting: vertical surface using stainless mounting ring (Ø 67 mm overall).
• Cable: 0.5 m pigtail leads; sensor electronically isolated from housing.
• Accuracy characteristics: high measurement accuracy, minimal linearity errors; EMC-protected.

Features

• Single-axis liquid-capacitive inclinometer; 0–5 V DC analog output.
• Supply: +8…+30 V DC non-regulated; integrated 5 V excitation.
• Model ranges: ±10° (NG2U) | ±30° (NG3U) | ±80° (NG4U).
• Housing: 30% glass-filled PBT plastic, IP65 environmental protection.
• Operating temp: −40 °C to +85 °C; response time <0.3 s (1–3 s optional).
• Noise immunity & stability: hysteresis-free signal; very low relative linearity errors; EMC certified.

Options

• Sensitivity (per range): 200 mV/° (±10°), 66.67 mV/° (±30°), 25 mV/° (±80°).
• Mounting: vertical surface with supplied stainless mounting ring (same envelope as NGi).
• Cable: 0.5 m shielded pigtail leads; sensor galvanically isolated from housing.

Features

• Compact single- and dual-axis inclinometers providing verified accurate angular measurement in industrial, vehicle, and construction applications
• Available as SB1i (single-axis) or SB2i (dual-axis) models with multiple simultaneous outputs
• Rugged aluminum housing, sealed to IP67, ensures long-term durability in harsh environments
• Temperature-compensated MEMS sensors for repeatable accuracy over −40 °C to +85 °C
• Flexible signal options: Voltage (0–5 V, 0–10 V), Current (4–20 mA), and RS-485 digital
• Built on a common electronics platform with overvoltage and EMC protection for dependable operation

Options

• Measurement Ranges: ±10° | ±30° | ±60° (model dependent)
• Power Supply: 8–30 V DC
• Outputs: Voltage, Current, RS-485, or mixed configurations
• Mounting: vertical or horizontal surface; two-hole pattern
• Accessories: RDI / RAD digital displays, OEM cable assemblies
• Housing: anodized aluminum body with sealed connector interface

Features

• Single- and dual-axis electronic inclinometers providing verified accurate angle measurement in larger, universal housings for OEM integration
• Available as SB1U (single-axis) and SB2U/SBG2U (dual-axis) models
• Rugged metal housing, environmentally sealed to IP67, designed for industrial and outdoor use
• Temperature-compensated MEMS sensors for stable performance from −40 °C to +85 °C
• Output options: Voltage (0–5 V or 0–10 V), Current (4–20 mA), and Digital RS-485 (variant dependent)
• Shock- and vibration-resistant, built for long-term accuracy in demanding environments

Options

• Measurement Ranges: ±10° | ±30° | ±60° (model dependent)
• Power Supply: 8–30 V DC
• Outputs: Voltage, Current, or RS-485 (per model selection)
• Mounting: flat base surface with standardized bolt pattern; orientation defined at installation
• Accessories: RDI/RAD digital displays and OEM cable assemblies
• Housing: universal anodized aluminum enclosure with sealed connector interface

Features

• Heavy-duty stainless-steel housing, an alternative to the SB aluminum housing
• Available for inclination or acceleration measurement
• Single or dual-axis configurations
• 0–5 V or 4–20 mA outputs (according to sensor used)
• Up to ±80° measuring range
• Seawater-resistant (V4A) stainless steel, pressure-resistant 10 bar (1 MPa) / 100 m water depth
• Corrosion-resistant, rigid four-point attachment of 3.2 mm circuit board
• Sensor and electronics galvanically isolated from housing
• Environmental protection: IP68; operating temperature –40 ° to +85 °C

Options

• Cable entry: liquid-tight PG9 (V4A steel with strain relief, 8–10 mm diameter) or SubConn® underwater plug connector
• Mounting: flat vertical or horizontal surface (specified at time of order)
• Weight: 4 lb (1.82 kg without cable)
• Storage temperature: –45 ° to +90 °C
• Available as single- or dual-inclinometer package (same sensor specifications/outputs as SB packages).
• Contact Rieker Inc. to discuss your specific needs.

Features

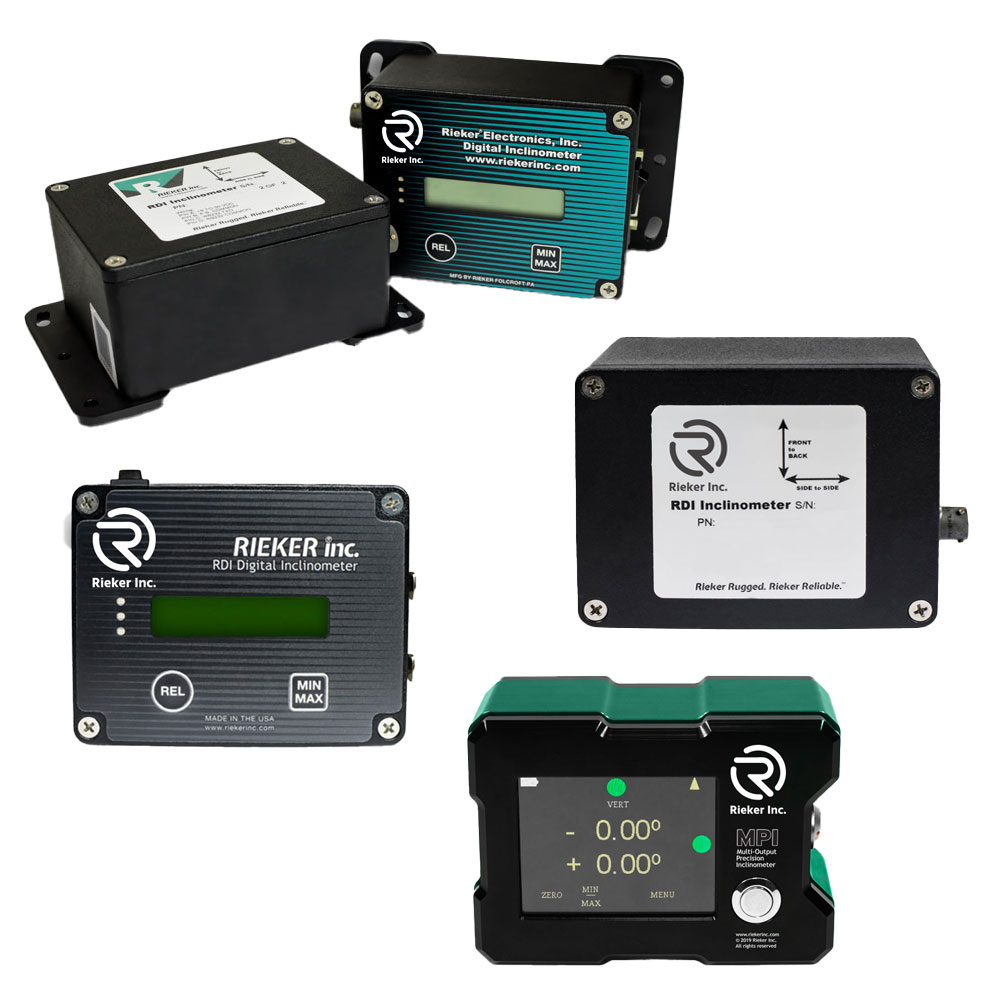

• Remote digital display unit for Rieker electronic inclinometers and sensors (compatible with H4, H6, NG, SB, XB, and other models)
• Provides clear, real-time digital angle indication on an easy-to-read LCD display
• Designed for panel or enclosure mounting in vehicles, equipment cabs, or fixed installations
• Supports both single- and dual-axis sensors, depending on connected model
• Operates from 8–30 V DC, suitable for industrial and vehicle systems
• Accuracy Proven: factory-calibrated for seamless pairing with corresponding inclinometer models
• Compact, rugged enclosure built for field reliability and vibration resistance

Options

• Display Format: single- or dual-axis readout (degrees, percent grade, or custom engineering units)
• Outputs: pass-through or data logging depending on model configuration
• Power Supply: 8–30 V DC (standard); optional connectorized cabling sets available
• Mounting: panel mount or remote bracket configuration
• Cabling: pre-terminated harnesses for direct connection to Rieker sensors
• Environmental Protection: sealed faceplate with conformal-coated electronics for moisture and dust resistance
• Custom Configurations: specialized firmware, display ranges, or units available by request – Call Rieker to discuss your application and configuration.
