Flex series H6 Digital Inclinometer
USER CONFIGURABLE ALL-IN-ONE INCLINOMETER
⚠️ Vendor Alert: Malicious Activity Using Rieker Inc.’s Name
Vendor fraud has become a significant issue in the business marketplace, and we’ve noticed an alarming increase in its prevalence. Please be informed that Rieker has never issued a Purchase Order (PO) using private email addresses such as Gmail, Yahoo, or iCloud. This is a crucial measure to ensure the utmost security for our prospective vendors. Please note that it’s rare for Rieker to open POs with unauthorized vendors requesting net 30 terms. Therefore, if you suspect that you may have received a suspicious PO, please don’t hesitate to contact our main number at (610)-500-2000 to verify the authenticity of the PO.
For a first time PO, please contact us directly via purchasing@riekerinc.com for confirmation as an added precaution.
KEY FEATURES OF H6 Flex Series Digital Inclinometer
THE BEST ALL-IN-ONE CONFIGURABLE INCLINOMETER
USER CONFIGURABLE
With the help of our Flex Configurator Kit, you can modify the sensor as needed with just a computer or laptop. Flex Configurator Kit is sold separately here.
SCALABLE 360° DUAL-AXIS ANGLE RANGE
It does not matter what angle range your application requires – the H6 can do it. Full 360° support. With our Flex Configurator Kit, you can set the range for any application.
MULTI-OUTPUT OPTIONS
Analog and Digital output available.
Analog outputs: Current, Voltage, and Switch outputs.
Digital outputs: RS485, J1939 (Prototype), CANOpen ( Call Us )
BUILT-IN DATA LOGGING
The H6 offers basic data logging capabilities. The amount of data that can be stored is dependent on the amount of memory available on the sensor.
RUGGED, ALL-WEATHER
With IP68 rating, operating temperature from -40° C to 85° C , and underwater operation tested up to 75 feet, the H6 is the perfect all-weather electronic sensor for any environmental conditions. The rugged metal housing coupled with vibration and shock resistance make this sensor perfect for even the roughest conditions. The H6 is also available in a rugged Stainless Steel Housing.
VARIABLE MOUNTING
You are no longer constrained to mounting your sensors in a single orientation. The H6 inclinometer can be configured for multiple mounting positions for every application.
H6 Configurable Digital Inclinometer
$535.00
Product Overview:
The H6 inclinometer provides highly accurate tilt sensing in a rugged metal IP68 rated ALL-weather housing. Operating temperature from -40° C to 85° C and underwater operation tested up to 75 feet makes the H6 a perfect inclinometer for most environments. The H6 is also available in a Stainless Steel Housing. The output parameters can be modified at the factory to meet your specifications (i.e. range, polarity). We also offer the Flex Series Development Kit allowing the end user to modify the sensor as needed right from a PC – providing full flexibility for R&D and OEM production lines.

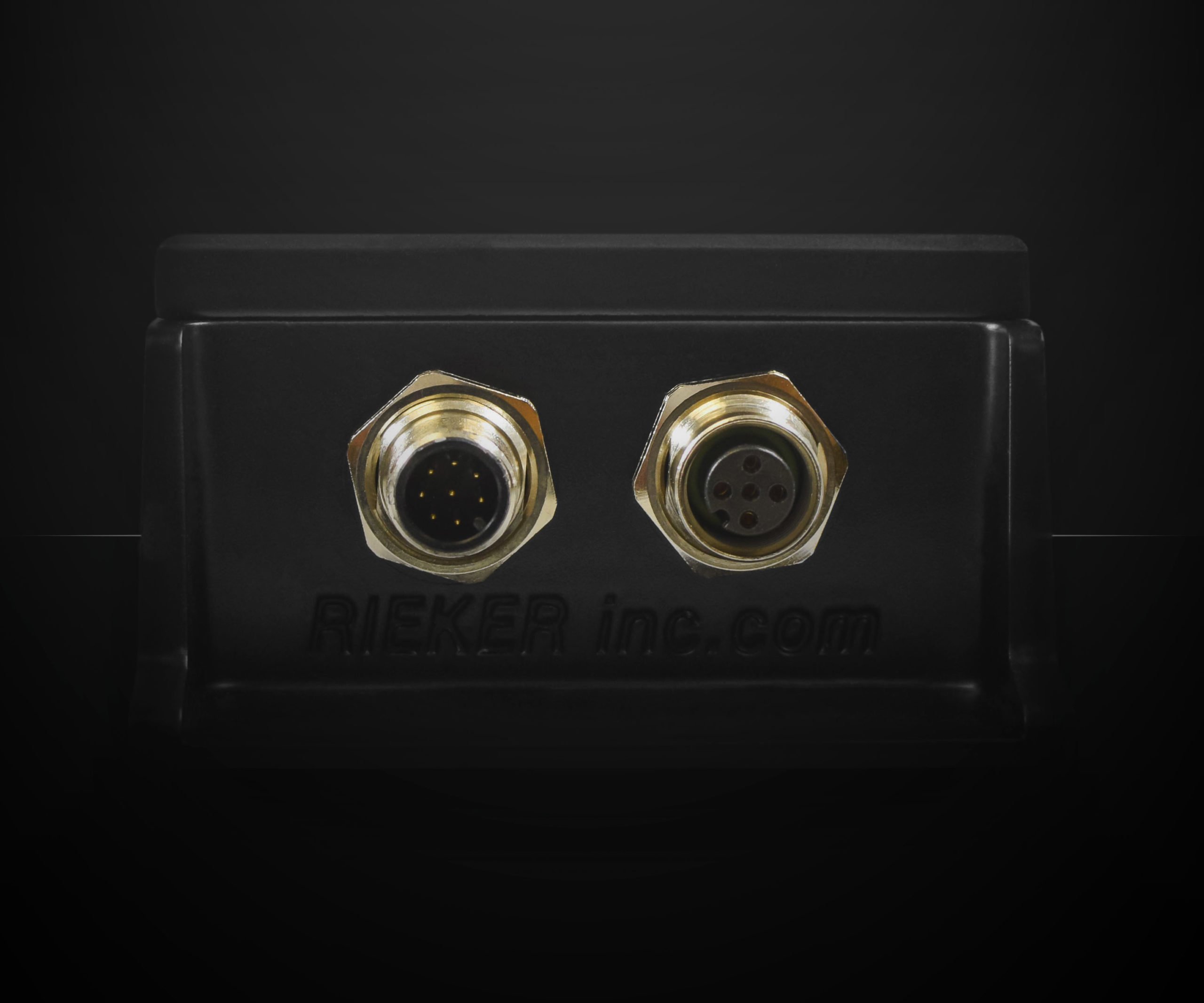

Input and Output cables are sold separately here.
Multiple H6 sensors can be daisy-chained together in a row for monitoring along bridge spans, solar field arrays, and other applications that would benefit from multiple sensors. Daisy-chain cables are sold separately here.
H6-FLX-B Digital Remote Inclinometer
$535.00
Product Overview:
The H6-FLX-B inclinometer provides highly accurate tilt sensing in a rugged metal IP68 rated ALL-weather housing. The output parameters are factory set for use with our Remote Angle Display (sold separately). The H6-FLX-B is a dual axis ±180 degree unit.
RAD H6 Remote Angle Display
$602.16
Product Overview:
The RAD14-FLX-B Remote Angle Display System provides remote angle monitoring. This is a display ONLY. Designed to take angle measurements in remote locations, this battery powered digital LCD display box is matched with our H6-FLX-B units (sold separately) to provide a stand-alone angle measurement system.
WARNING: This product’s interiors contain leaded solder on the PCB and can expose you to Lead and Lead Compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or visit our Prop 65 Page.
Flex Series Configurator Kit
Starting at $155.32
Product Overview:
The Flex Series Configurator Kit is a tool for when using Rieker Flex Inclinometers (H6 or H4360 series). With the included Flexware™ application, users can easily program and fine-tune inclinometer parameters directly from a PC. This user-friendly toolkit enables full customization for various application needs—ideal for OEMs, system integrators, and field engineers.
Simply install the Flexware™ software, connect your sensor via USB, and begin adjusting settings such as measuring range, output type, data logging, and switch trip points—all in real-time.
Applications of the H6 Digital Inclinometer
Used across industries where tilt sensing and rugged design are essential:
- Bridge span monitoring
- Solar tracking systems
- Construction site machinery
- Agricultural automation
- Military-grade equipment
- OEM production environments
FAQs About the H6 Flex Series Digital Inclinometer
What Is A Digital Inclinometer Sensor?
A digital inclinometer sensor electronically measures angular position relative to gravity. Unlike a mechanical inclinometer with a visual scale, it provides measurement data through an analog or digital output for use by a display, control system, data logger, or connected monitoring system.
What Makes The H6 Flex Series Different From A Standard Digital Inclinometer?
The H6 Flex Series is a software-configurable inclinometer platform designed to accommodate different measurement and integration requirements. It can be configured for any defined angular range up to ±180°, with single-axis, dual-axis, and multi-mount sensing configurations available.
Depending on the selected model, output options include analog current, analog voltage, and RS-485 digital communication. Measurement range, filtering, scaling, output behavior, and other supported parameters can be configured using the Flexware Toolkit.
This allows one sensor platform to be adapted for applications ranging from equipment control and position feedback to structural monitoring and data acquisition.
What Accuracy Does The H6 Digital Inclinometer Provide?
H6 accuracy is tested and verified across the sensor’s full operating temperature range:
- Typical accuracy: ±0.03°
- Maximum accuracy: ±0.075°
Actual measurement performance can also be influenced by the selected range, mounting, vibration, movement, installation alignment, and other operating conditions. Rieker can help determine the appropriate configuration and expected performance for a specific application.
What Single-Axis, Dual-Axis, And Multi-Mount Configurations Are Available For The H6?
The H6 can be configured to match the direction and number of tilt measurements required by the application:
- Single-axis vertical configuration measures angular position through a vertical plane.
- Dual-axis horizontal configuration measures X- and Y-axis tilt simultaneously, commonly described as pitch and roll.
- Multi-mount configuration supports both dual-axis horizontal measurement and single-axis vertical measurement, providing X-, Y-, and Z-angle measurement capability within one sensor configuration.
The available measurement configuration depends on the sensing element and its orientation within the H6 housing. This makes the H6 suitable for horizontal, vertical, or application-specific mounting arrangements.
How Can The H6 Be Configured For Different Applications?
The H6 Flex Series can be configured at the factory or do-it-yourself using the Flexware Toolkit to match the measurement and output requirements of a specific installation. Depending on the selected model, configurable parameters may include measurement range, output scaling, filtering, zero position, alarm or switching thresholds, and data-logging behavior.
Need Customization?
Can’t find what you are looking for?
Rieker offers highly configurable sensors like the H6 and H6EX, and we can also design and build custom sensors tailored to your specific requirements. Whether you need semi-custom modifications or fully custom solutions, our team is ready to meet your unique needs. Contact Rieker today to explore how we can support your success.
