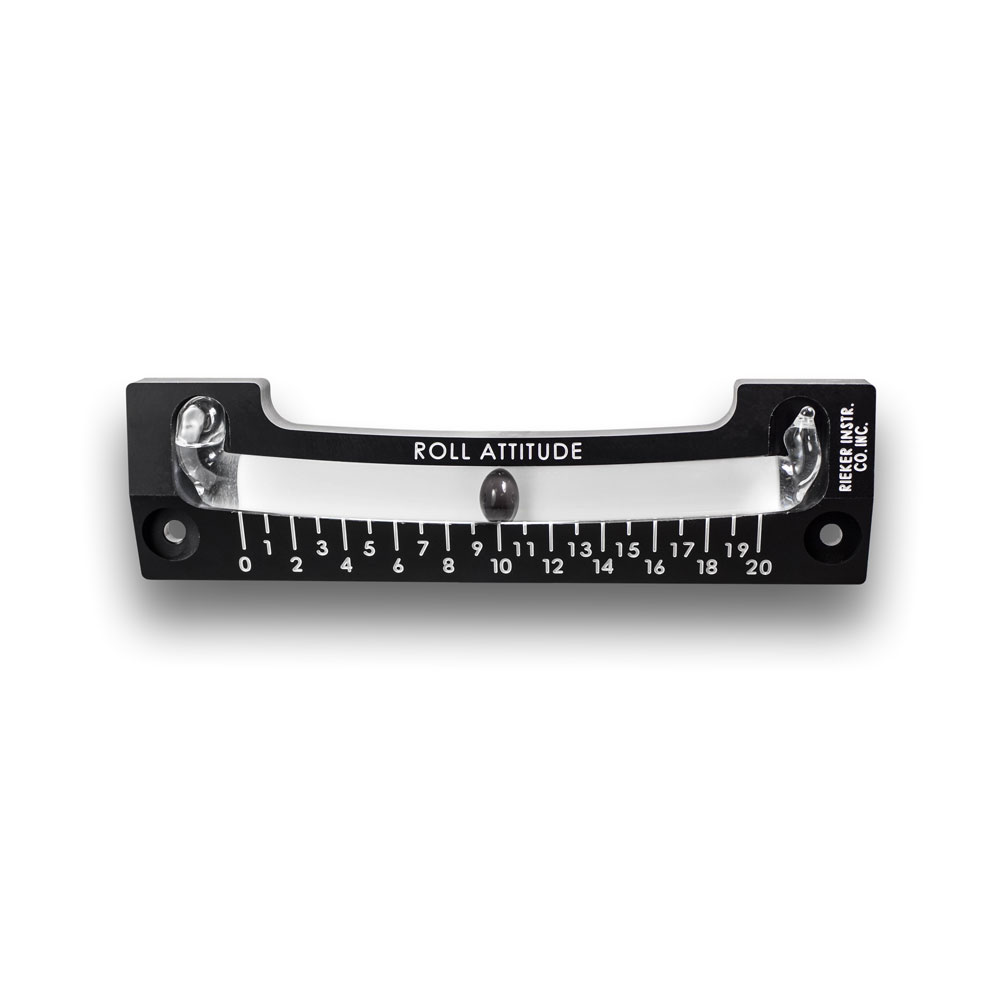

5002R Mechanical Aircraft Fuel System Attitude Indicator
$450.00
Aircraft attitude indicators are specialized Pitch & Roll Inclinometers for balancing loads during fueling or loading of commercial aircraft. They are also referred to as a clinometer or inclinometer.
This unit is FAA 8130-3 certified under our PMA agreement.
National Stock Number (NSN): 1680-01-657-6918
Our 5002R mechanical inclinometer is a ±5 degrees unit with 0.5 degree increments. They are sequentially numbered left to right: 1 – 20 The housing is made of black compression molded acetal copolymer resin, making these clinometers extremely tough for all types of environments and weather conditions. Operating temperature range from -50°C to 70°C. The large, clear number and degree markings make it easy to get quick, accurate readings.
Only 3 left in stock
Aircraft Fuel System Attitude Indicator model number 5002R. Our attitude indicators have been installed as original equipment on many airplanes at the manufacturing stage or purchased as an aftermarket upgrade to replace older style ‘plumb bob’ systems.
| Weight | 6 oz |
|---|---|
| Dimensions | 6.25 × 1.75 × 0.625 in |
| Application | |
| Number of axes | |
| Backlit | |
| Classification | |
| Customizable | |
| FAA 8130-3 Certified | |
| Measuring Range | |
| Industries | |
| Color Zones | |
| Case Material | |
| Tick Mark Increments | |
| Units of Measurement | |
| Brand | |
| Manufacturer |
