The H4 Series electronic inclinometer provides single axis inclination sensing in a rugged environmentally protected metal housing. The sensing package incorporates a liquid capacitive sensing element and integrated temperature compensation over the industrial operating range of –40° to +85°C.

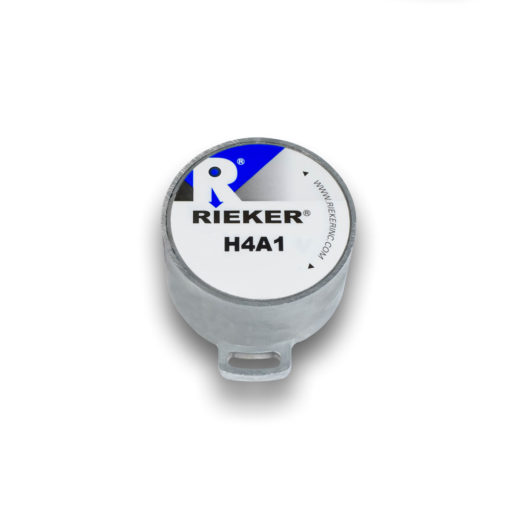

H4A1 Electronic Inclinometer

Name: H4A1 Electronic Inclinometer
SKU: H4A1
Availability: BackOrder

$324.82

Product Overview:

The H4 Series of inclinometers provide single axis inclination sensing in a rugged environmentally protected metal housing. The sensing package incorporates a liquid capacitive sensing element and integrated temperature compensation over the industrial operating range of –40° to +85°C.

WARNING: This product’s interiors contain leaded solder on the PCB and can expose you to Lead and Lead Compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov or visit our Prop 65 Page.

Measuring Range

Resolution

Clear

SKU: H4A1 Categories: Electronic Inclinometers, Electronic Sensors, H Series Electronic Inclinometers

Technical Specifications
Documents

Specifications

Weight	8 oz
Dimensions	2.6 × 2 × 1.1 in
Accessories	No
Application	Antenna Positioning, Platform Leveling, Roll Angle, Slope Warning System
Number of axes	One
Backlit	No
Case Material	Die Cast Zinc
Classification	Electronic
Connector	Pigtail Leads
Customizable	No
Industries	Construction, Defense, Mining
Input	8 to 30 VDC
IP Rating	67
Measuring Range	±70 Degrees, ±30 Degrees, ±45 Degrees
Operating Temperature	-40°C to 85°C
Resolution	0.03 Degrees, 0.04 Degrees, 0.05 Degrees
Output	Analog: Voltage
Response Rate	3.0 Hz
Temperature Compensation	Yes
Units of Measurement	Degrees
Brand	Rieker Inc.
Manufacturer	Rieker Instrument Company
