MPI: Multi-Output Precision Touch Screen Inclinometer
$2,268.00
Our MPI unit is a touch screen inclinometer offering a multi-output precision sensing solution. The MPI offers multiple configurable outputs: Graphic Touch-Screen Sunlight-readable Display, Digital RS232 & RS485, Analog Voltage, and four (4) Relay Switches providing maximum functionality.

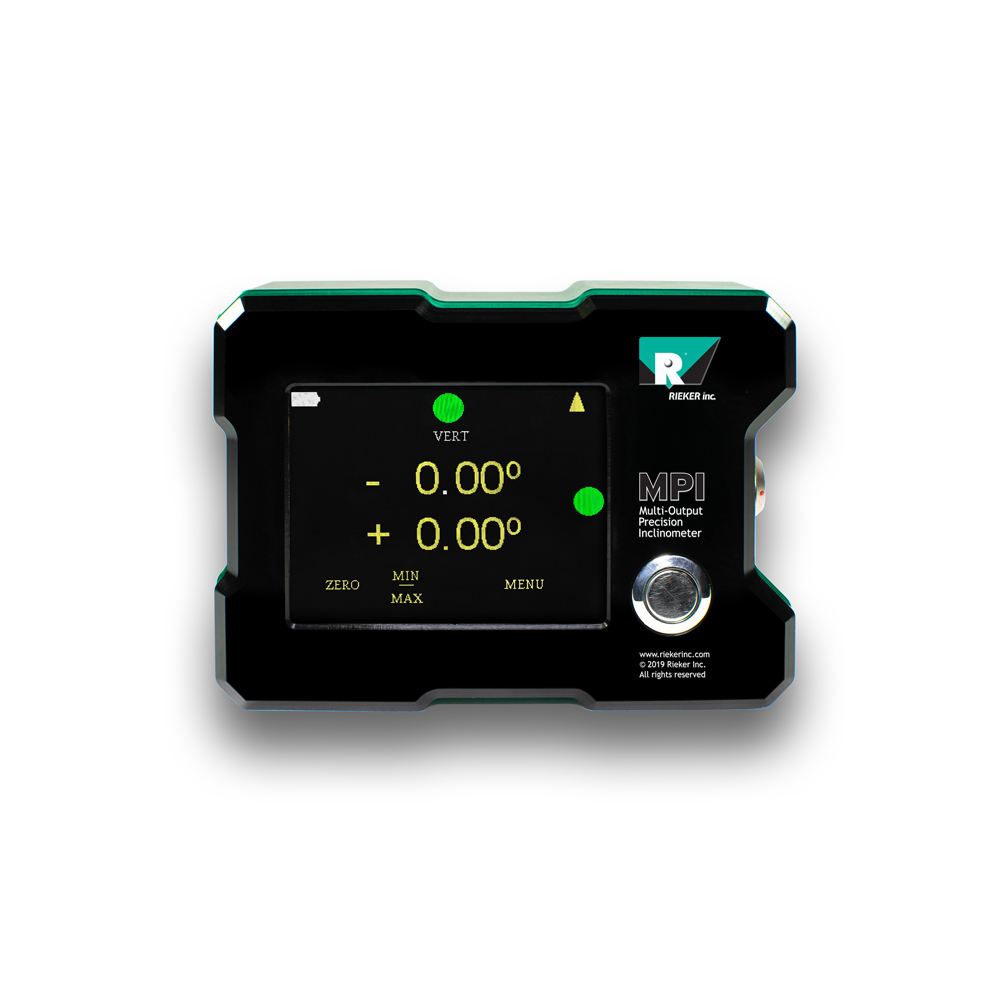

The display shows angle in degrees (º), percent grade (%), or inch per foot rise (“) with either 1, 0.1 or 0.01 degree resolution. The display provides graphical axis level indicators in green, yellow, and red, which can be activated to trip at predefined angles within the specified measuring range – providing the operator a bright visual alert of changed condition. These can be coordinated with the built in Relay outputs – each with field adjustable trip angle settings.

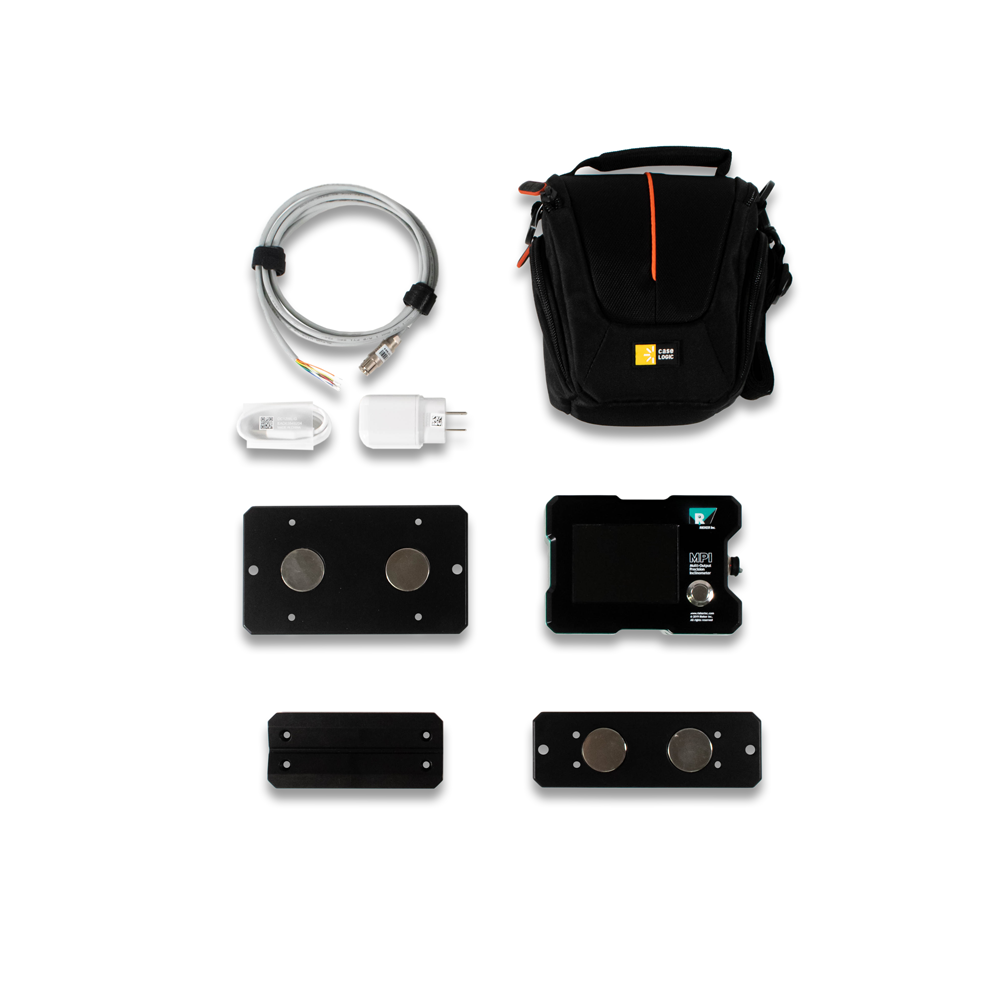

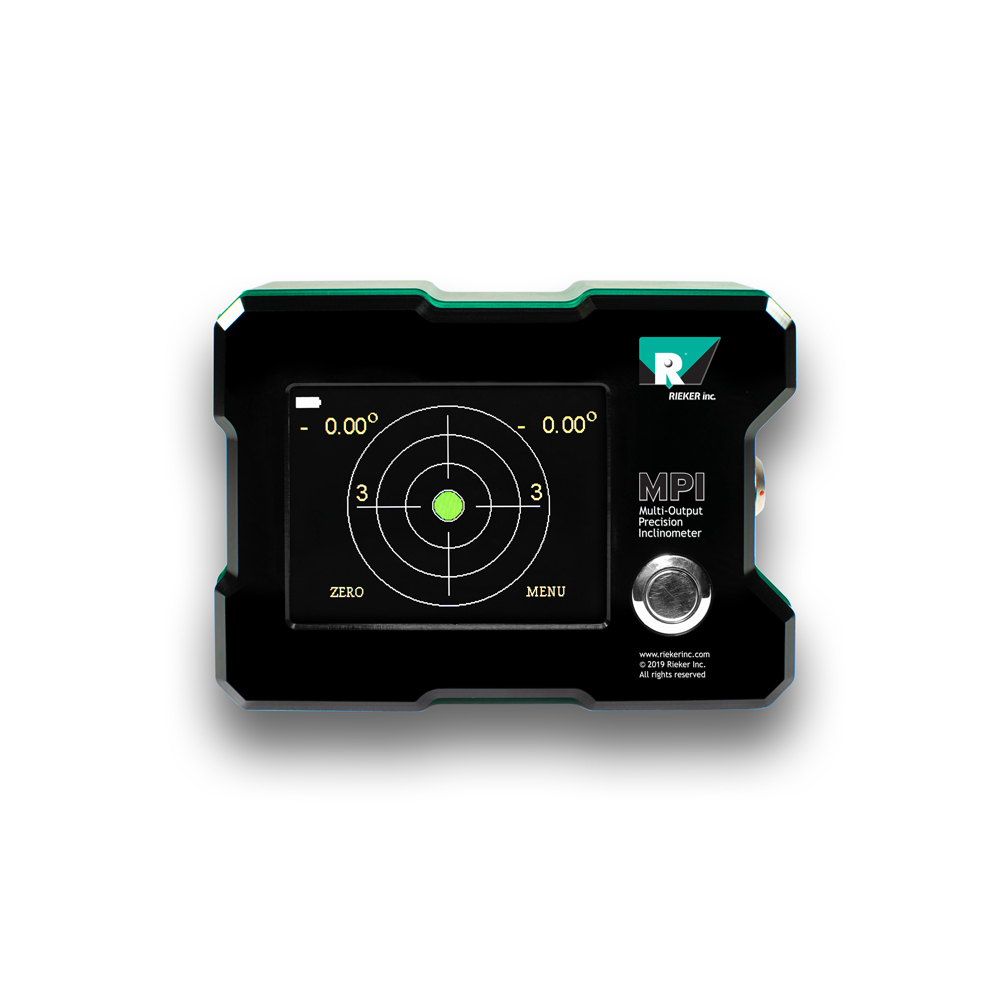

The MPI also has a Bulls-Eye Bubble Level mode for precise leveling applications.Powered by a long-lasting rechargeable battery or external 8..30VDC non-regulated input supply the MPI is made for mobile hand-held use, temporary magnetic placement (mounting plates included) or permanent installation.
In stock

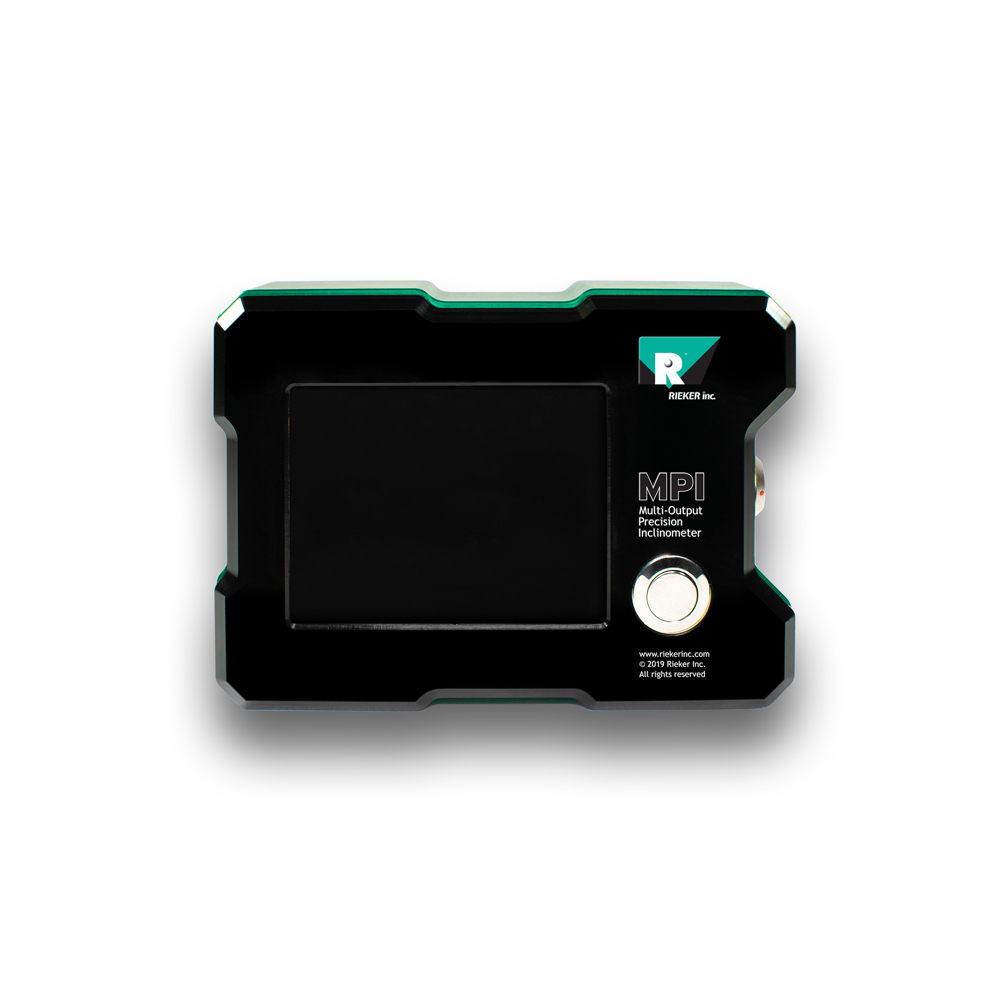

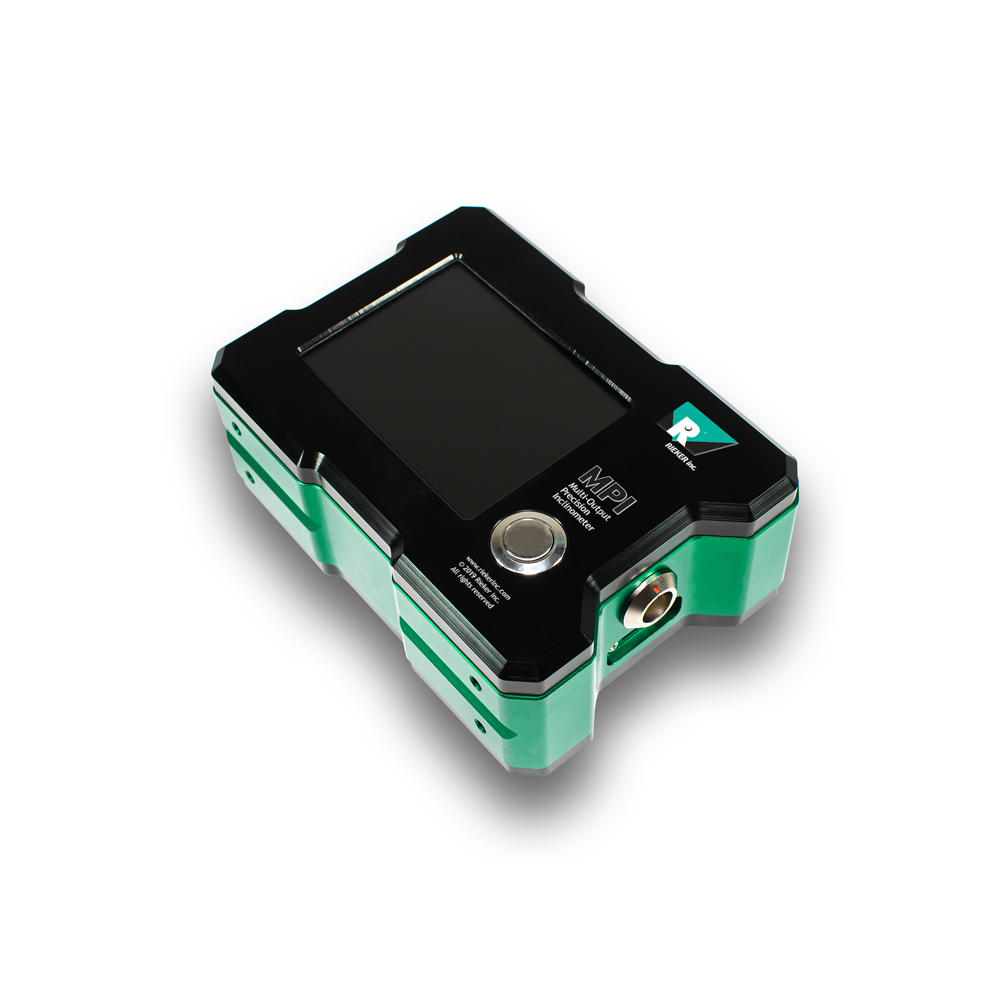

Our MPI unit is a touch screen inclinometer providing a multi-output precision sensing solution. The MPI provides accurate and precise single or dual axis inclination sensing in a rugged machined Aluminum housing – each edge provides a flat reference surface for ease of use. The design of the housing provides for hand-held use; the anodized finish protects the surface from wear. The MPI offers digital, analog, switch and display outputs making the MPI ideal for numerous applications.
| Weight | 160 oz |
|---|---|
| Dimensions | 17 × 14 × 5 in |
| Accessories | |
| Application | Antenna Positioning, Ball Banking, Motor Grading, Pitch and Roll Monitoring, Platform Leveling, Roll Angle, Roll Over Early Warning, Slope Warning System, Vehicle Tilt Monitoring |
| Number of axes | |
| Backlit | |
| Case Material | |
| Classification | |
| Customizable | |
| Industries | |
| Input | |
| IP Rating | |
| Measuring Range | -10 Degrees to +90 Degrees, ±15 Degrees, ±180 Degrees, ±45% Grade, ±50 degrees, ±6 Degrees, ±60 Degrees, ±70 Degrees, ±75 Degrees, ±80 Degrees, -30 Degrees to +90 Degrees, ±1.5 Inch Per Foot Rise, ±13% Grade, ±5 Degrees, ±10 Degrees, ±20 Degrees, ±26 degrees, ±30 Degrees, ±45 Degrees, ±90 Degrees |
| Operating Temperature | |
| Output | Switch: Relay, Analog: Voltage, Digital: LCD Display, Digital: RS232, Digital: RS485 |
| Refresh Rate | |
| Resolution | |
| Temperature Compensation | |
| Units of Measurement | |
| Manufacturer | |
| Brand |
