|Dimensions||4.35 × 3.25 × 1.8 in|
|Number of axes|
-10 Degrees to +90 Degrees, ±15 Degrees, ±180 Degrees, ±50 degrees, ±6 Degrees, ±60 Degrees, ±70 Degrees, ±75 Degrees, ±80 Degrees, -30 Degrees to +90 Degrees, ±5 Degrees, ±10 Degrees, ±20 Degrees, ±26 degrees, ±30 Degrees, ±45 Degrees, ±90 Degrees
|Units of Measurement|

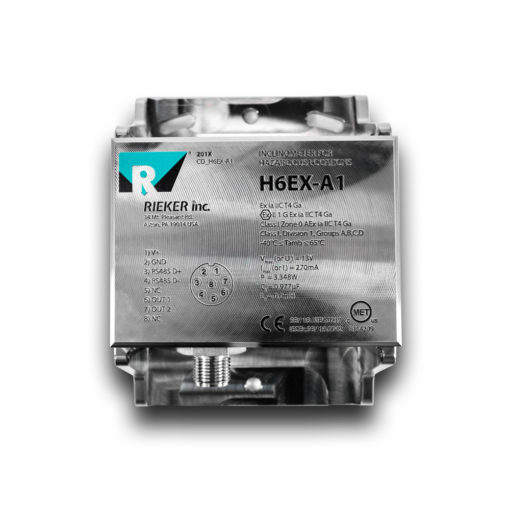

H6EX Intrinsically Safe Inclinometer
Our H6EX is intrinsically safe and suitable for hazardous locations with continuous, long or frequent periods of exposure to hazardous elements.
- ATEX / IECEx Approved:
- Ex II 1G Ex ia IIC T4 Ga
- Ex ia IIC T4 Ga
- US and Canada Approved:
- Class I, Division 1, Groups A,B,C,D
- Class I, Zone 0, AEx ia IIC T4 Ga
The H6EX is a dual-axis sensor that provides two continuous and fully configurable analog outputs which can be set to current or voltage. The all-weather, IP68 rated rugged 316 Stainless Steel housing allows for use in the most extreme environments. With integrated temperature compensation, vibration and shock resistance, ESD, surge, and reverse polarity protection, the H6EX is equipped to handle the toughest conditions.
Rieker offers two H6EX models: The H6EX-A1 and H6EX-A2.
Our H6EX-A1 model integrates an optional RS485 digital output alongside dual analog outputs and offers operating temperature range from -40°C to 65°C.
Our H6EX-A2 model offers dual analog outputs and offers an operating temperature range from -40°C to 85°C.
